DELTA PLUS ONYX

5,129.00

ONYXBJ

Product images are for illustrative purposes only and may differ from the actual product.

Specifications
ABS dual shell safety helmet with PC retractable visor. Sport and dynamic design. 3 textile straps with 6 fixing points. Foam sweat band. One-D Rotor clamping system: head size 53 to 63 cm. 2 possible positions of the headband (top/low) for better comfort. Retro-reflective stickers. Electrical insulation up to 1 000 V.A.C. or 1 500 V.D.C, protection against arc fault Class 1 (GS-ET 29). Visor with anti-Fog N and anti-scratch K treatments and protection against electrical arcs, and molten metals or hot liquids projections.
ABS Dual-Shell.
Polycarbonate visor.
Harness: Textile lining: polyamide. Sweatband: polyester foam. Anchorage: HDPE. Headband: LDPE.
Premium Anti-scratch K Anti-mist N UV400
Video:

Tutorial:

Product Use – Risks
Electricity, gas and water supplyElectricity, gas, and water supply
Public worksPublic works
MaintenanceMaintenance
Oil & Gas (extraction)Oil & Gas (extraction)
ElectricalElectrical
UV / IRUV / IR
ShockShock
Product Highlights & User Benefits

Integrated visor

The compact and combined solution

Balanced center of gravity

For a prolonged use
Reduction of musculoskeletal disorders (MSDs)

Comfortable distance between the visor and the user’s face

Good ventilation prevents fogging
Compatible with glasses

Easy locking of the visor in two positions

Optimum safety: The visor does not rise or fall unexpectedly

With the optimized visor grip area

Guaranteed use and maneuverability with or without gloves

Lateral reflectivity

For more visible workers

One-D Rotor ergonomic clamping system

One-handed adjustment with or without gloves

ABS double shell

Improved robustness, resistance to lateral deformation: increased protection

Replaceable visor

Easy replacement of damaged visors

Clips to hold a headlamp

Designed to attach a headlamp with an elastic headband

Polyamide cap : 3 textile headbands with 6 attachment points and adjustable headband in a high or low position

Better weight distribution in the case of shock and guaranteed user comfort

Microfibre storage bag

Easy storage for a longer product life

A modern design inspired by the world of sport offering dual protection for harsh work environments and electric hazards at a price accessible to all users.



Certifications and Standards

REGULATION (EU) 2016/425 REGULATION (EU) 2016/425

EN397:2012 + A1:2012 Protective helmets for industry

MM Molten metal spray
LD Lateral deformation
-20°C +50°C Use: Very low temperature – -20°C / +50°C
440VAC Electric insulation
Electrically insulating helmets for use on low voltage installations

EN50365:2002 Electrically insulating helmets for use on low voltage installations

CLASS 0 Electrically insulating helmets – Class 0

EN166:2001 Personal eye-protection – Specifications

1 AT 8-1-0 9 KN Oculars
3 8-1 9 AT Frame

EN170:2002 Ultraviolet filters

2C-1.2 echelon
Additional requirements electric arc protection.

GS-ET 29:2011-05 Additional requirements electric arc protection.

8-1-0 Oculars
CLASS 1 Class
CLASS 0 Light transmittance class = Class 1 : (50% ≤ VLT(D65) < 75%) / Class 0 : (VLT(D65) ≥ 75%).
8-1 Frame

USA STANDARDS

American National Standards Institute- Industrial Head protection -Hard Hat Types and Class Standards

ANSI-ISEA Z89.1:2014 American National Standards Institute- Industrial Head protection -Hard Hat Types and Class Standards

CLASS E Class E Electrical protection class => Class E: Electrical (proof-tested at 20.000V)
TYPE I Type 1 Type of impact protection: TYPE Ⅰ: Impact top of the head + Flammability + Penetration
53-63 cm Sizes / Dimensions
American National Standards Institute - Occupational and Educational Personal Eye and Face Protection Devices

ANSI-ISEA Z87.1:2015 American National Standards Institute – Occupational and Educational Personal Eye and Face Protection Devices

Z87+ U6 D3 Performances



Documents
Share this product!

Description

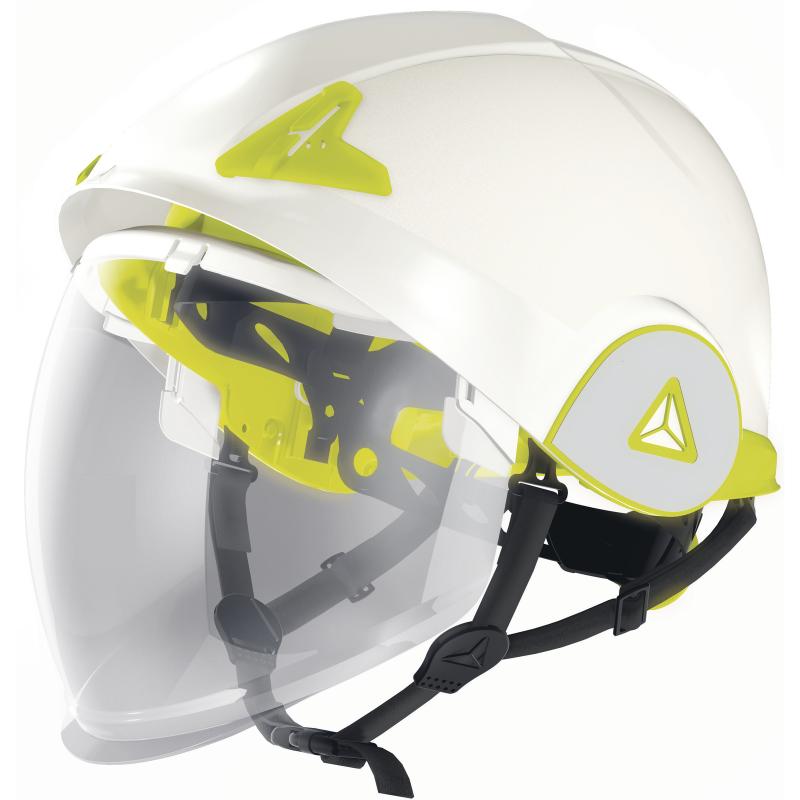

DUAL-SHELL SAFETY HELMET WITH RETRACTABLE VISOR

Additional information

Color

White
