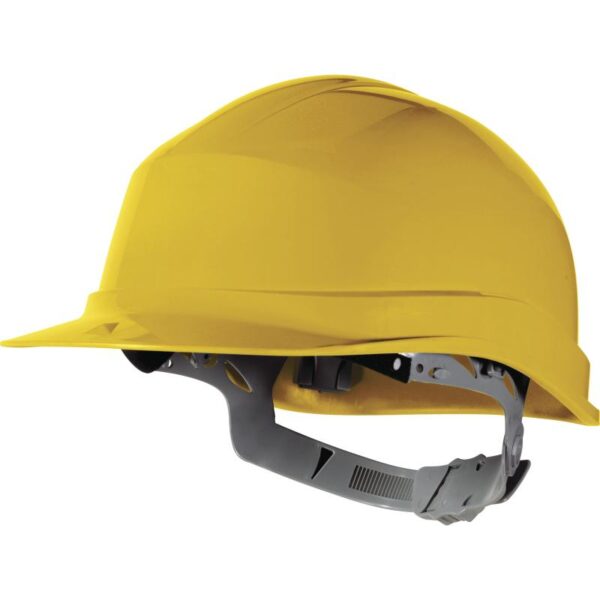

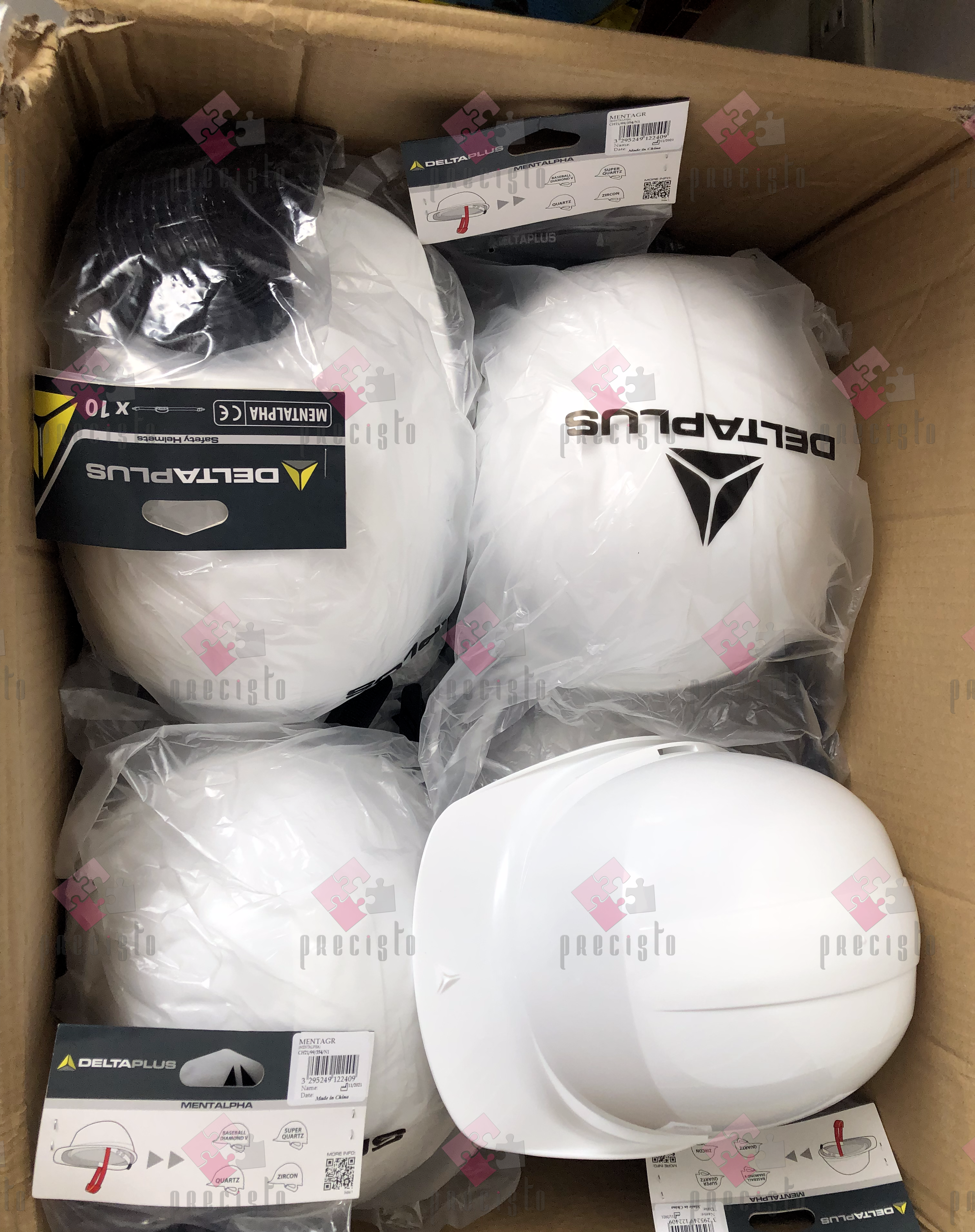

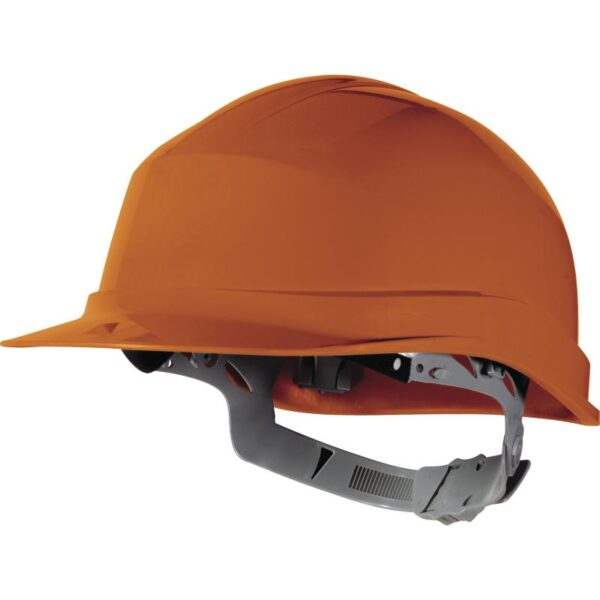

DELTA PLUS ZIRCON 1 (WITH MENTALPHA)

Name: DELTA PLUS ZIRCON 1 (WITH MENTALPHA)
SKU: 13364
Price: 449.00 PHP
Availability: InStock

₱449.00

ZIRCON1

Product images are for illustrative purposes only and may differ from the actual product.

Specifications

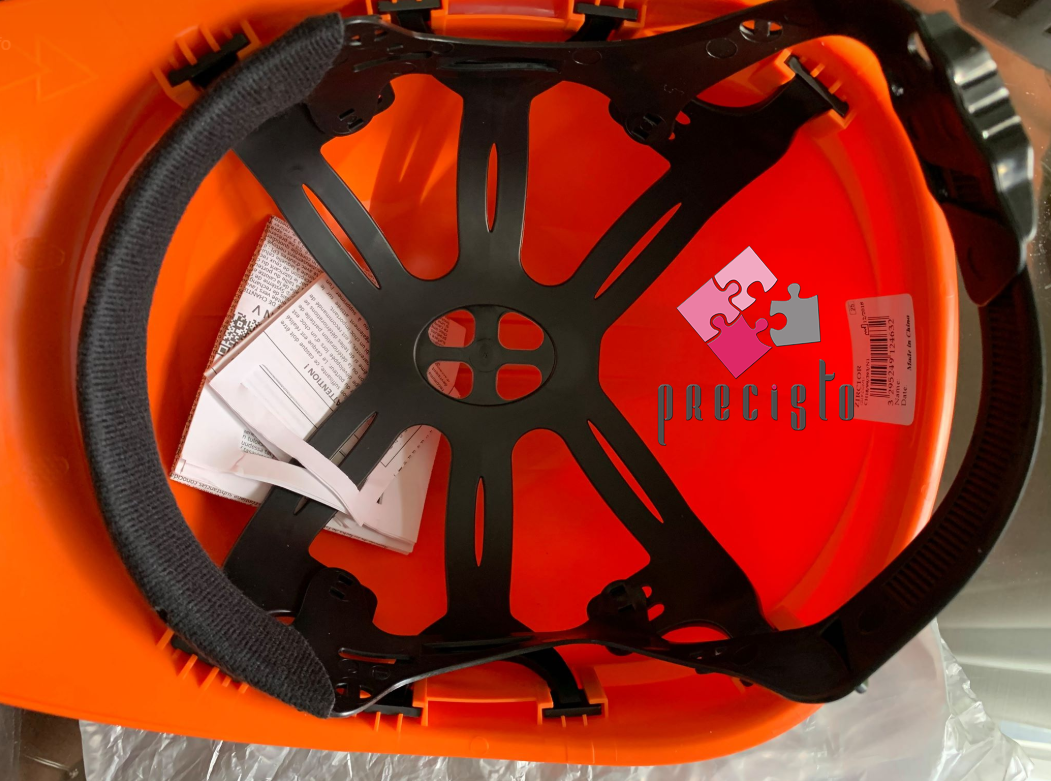

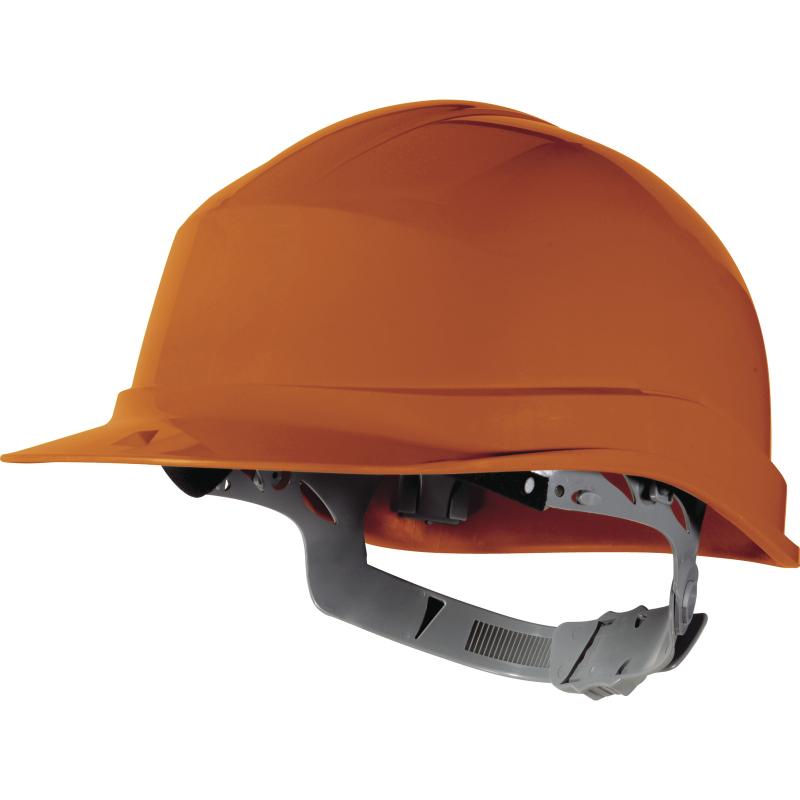

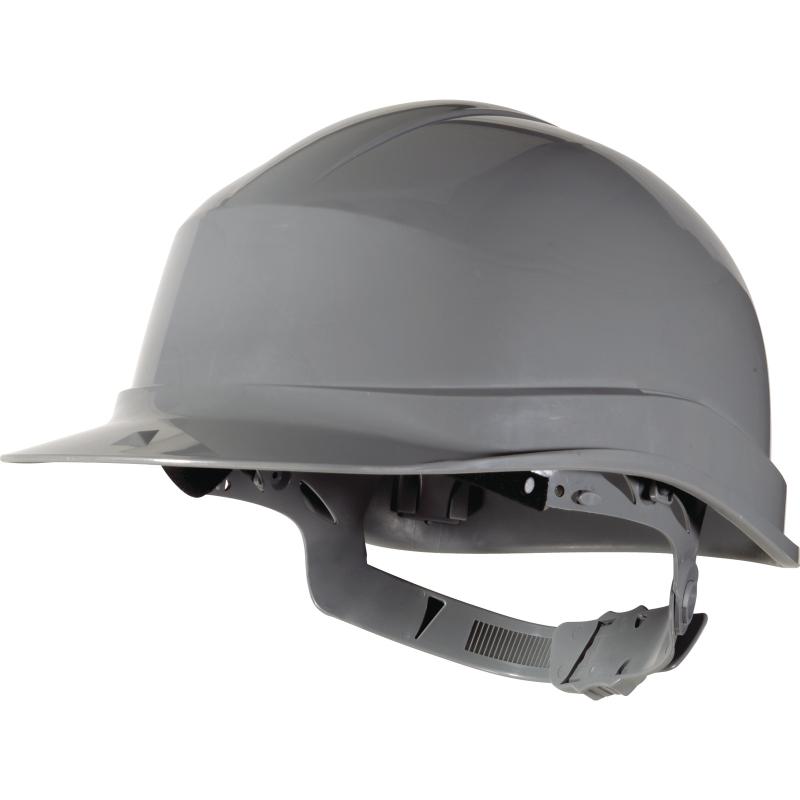

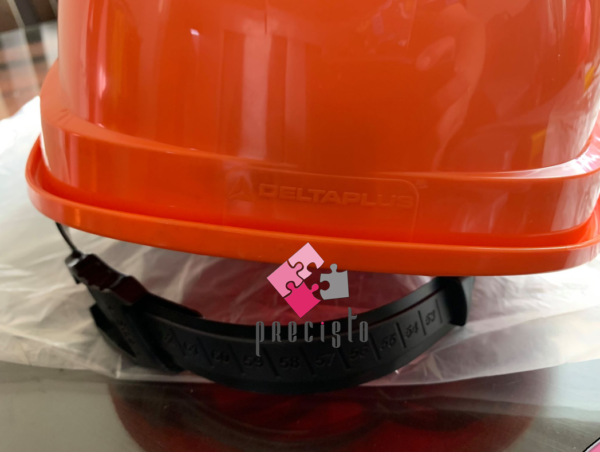

UV-resistant high-density polyethylene (HDPE) or polypropylene (PP) safety helmet. Low-density (LDPE) polyethylene cradle with 8 fixing points. Sweatband. Manual adjustment: head sizes 53/63 cm. Electrical Insulation up to 1,000 V.A.C. or 1,500 V.D.C. Standard holes for accessories. Anchorage for chin straps with 2 or 4 points.

Helmet: high-density polyethylene (HDPE) or polypropylene (PP).
Harness: LDPE. Sweatband: polyester foam.

Product Use – Risks

Public works

Maintenance

Warehousing

Electrical

Shock

Certifications and Standards:

REGULATION (EU) 2016/425

EN397:2012 + A1:2012 Protective helmets for industry

	-10°C +50°C	Use : Standard temperatures – -10°C / +50°C
	440VAC	Electric insulation

Protective helmets for the industry.

MANDATORY
– Impact*: force transmitted to the headform must not exceed 5 kN at the fall of an object of 5 kg from a 1m height. The impact energy of the helmet at the end of the test is 49 J.
– Penetration*: the tip of the mass used in the test (3 kg over 1m) must not come into contact with the skull.
– Flammability: the helmet should not burn with flame emission for more than 5 seconds after removal of the flame.

* The impact and penetration tests are performed at room temperature, at 50°C and at -10°C
OPTIONAL
In extreme temperatures: impact and penetration tests are conducted at room temperature at 150°C, at -20°C, or -30°C.
Protects against lateral compression.
The maximum deformation of the helmet should be ≤ 40 mm.
Protects against accidental short-term contact with a live electrical conductor up to 440 VAC.
Resistance to molten metal splashes

EN50365:2002 Electrically insulating helmets for use on low voltage installations

CLASS

Electrically insulating helmets – Class 0

Electrical insulation helmets for use in low-voltage environments.

MANDATORY

Electrically insulating helmets for use near energized equipment not exceeding 1,000 VAC or 1,500 VDC (appliance class 0).
Used simultaneously with other electrically insulating protective equipment, these helmets prevent dangerous currents from passing through to the person’s head.
These optional electrical insulation tests are more stringent than the EN397 and they complement them.
(2 triangle marking, Class 0).
