DELTA PLUS DIAMOND V UP

949.00

DIAMOND5UP

Product images are for illustrative purposes only and may differ from the actual product.

Specifications

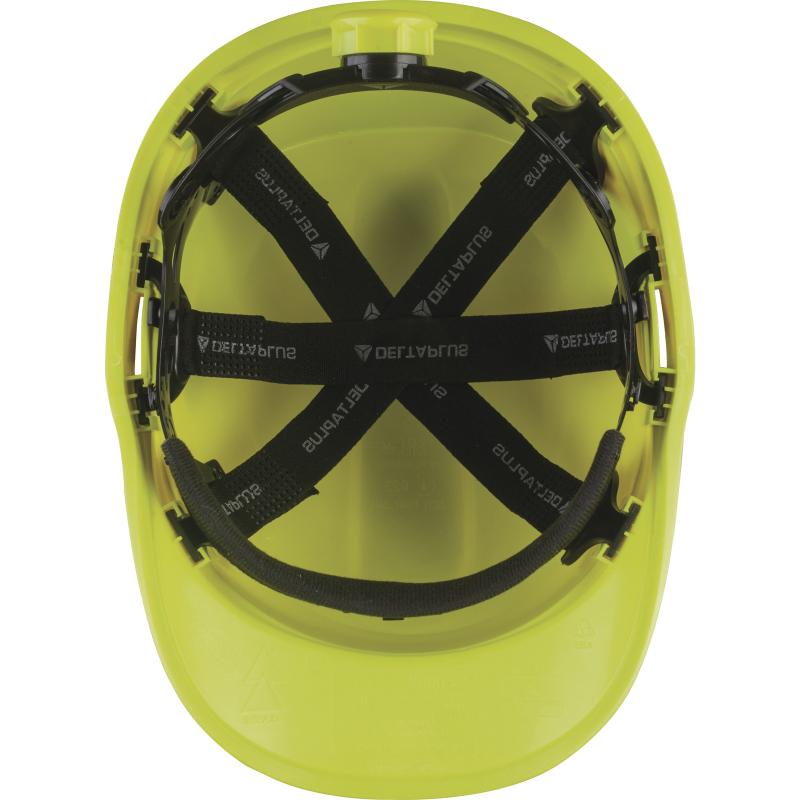

ABS safety helmet with innovative design. Tested in “reverse” position. Polyamide cradle: 3 fabric bands with 8 attachment points. Foam sweatband. Rotor clamping system: head size 53 to 63 cm. 2 possible positions around the head (high/low) for better comfort. Retro-reflective band. Sold with 4-point chinstrap.
Performance -30°C and standard EN397:2012 effective from 03/2016 production batches.
Shell material: ABS
Harness headband material: Polyethylene
Headdress material: Textile harness
Helmet peak: Standard
Textile harness: PA (Polyamide)
Headdress points: 8 points
Jugular points: 4 points
Harness adjustment: Wheel ratchet
Ventilation: Non-vented
Neckband material: Polyester
Head size (cm): 53-63
Weight (g): 424
Mounting notch (for earmuffs fixation): Yes
Jugular chin: No chin
Low temperature resistance: -30°C
High temperature resistance: +50°C
Availables or replacement accessories: Badge holder – Reflective strip – Perspiration headband – Shield – Lens – Jugular – Basane – Ear protection – Jugular with chin – Mesh visor – Neck protector – Hood – Logo – Wheel-ratchet harness adjustment
Compatible product: Lens – Shield – Earmuffs
Lifespan from manufacturing: 84 months
Lifespan from first use: 48 months
Technologies and Labels
D-ONE-ROTOR
‘D-ONE ROTOR’ clamping system
Product Use
  • Public works
  • Building
  • Finishing works / Craftsmanship
  • Light industry
  • Maintenance
  • Chemical industry
  • Oil & Gas (extraction)
  • Petrochemical
  • Power Energy
  • Storage
Protects from the Following Risks
  • Heat
  • Shock
  • Electrical
Product Highlights and User Benefits

One-D Rotor ergonomic clamping system

One-handed adjustment with or without gloves

Retro-reflective tapes

To be better seen at your workstation

Polyamide cradle : 3 fabric bands with 8 attachment points

Comfort

ABS for lighter weight and greater comfort

Features 3 textile straps with 8 fixing points for an optimal spread of weight

Adjustable from 53 cm to 63 cm for optimum comfort

Hygeine

Replaceable headband for better hygiene

Replaceable suspension for better hygiene

Removable brow pad, washable and replaceable for a perfect hygiene solution

Performance

Adjustable headband, low or top, for a safer fit and holding the cap in place when moving the head

Easy to Use

Reverse wearing for a maximum field of vision without a visor

Certifications and Standards

EN397:2012 + A1:2012 Protective helmets for industry

MMMolten metal spray
LDLateral deformation
-30°C +50°CUse: Very low temperature -30°C / +50°C
440VACElectric insulation
EN 50365

EN50365:2002 Electrically insulating helmets for use on low voltage installations

CLASS0Electrically insulating helmets – Class 0

Description

DELTA PLUS DIAMOND V UP Safety Helmet (Non-Vented, ABS)

The DELTA PLUS DIAMOND V UP hard hat protects your head with a sporty, versatile design. Workers can wear it upright or backward. Wearing it reversed gives you a wider field of view. Additionally, the lightweight ABS shell features reflective bands to keep you visible on the job. This durable safety helmet works perfectly in extreme temperatures from -30 °C to +50 °C.

For maximum comfort, an 8-point fabric harness spreads the weight evenly across your head. You can easily adjust the One-D Rotor wheel ratchet with one hand, even while wearing gloves. The helmet fits head sizes from 53 cm to 63 cm. Furthermore, you can adjust the headband height for a secure fit that stays in place. To maintain great hygiene, you can easily remove, wash, or replace the sweatband and suspension system.

This industrial hard hat protects workers in construction, manufacturing, and oil and gas sectors. It defends against heavy impacts, lateral crushing, and molten metal splashes. Moreover, it provides excellent electrical insulation for low-voltage environments. The 424-gram helmet includes a 4-point chinstrap and built-in slots for earmuffs. Finally, this certified safety helmet lasts up to 48 months from its first use.

Additional information

Color

Blue, Green, Orange, Red, White, Yellow
