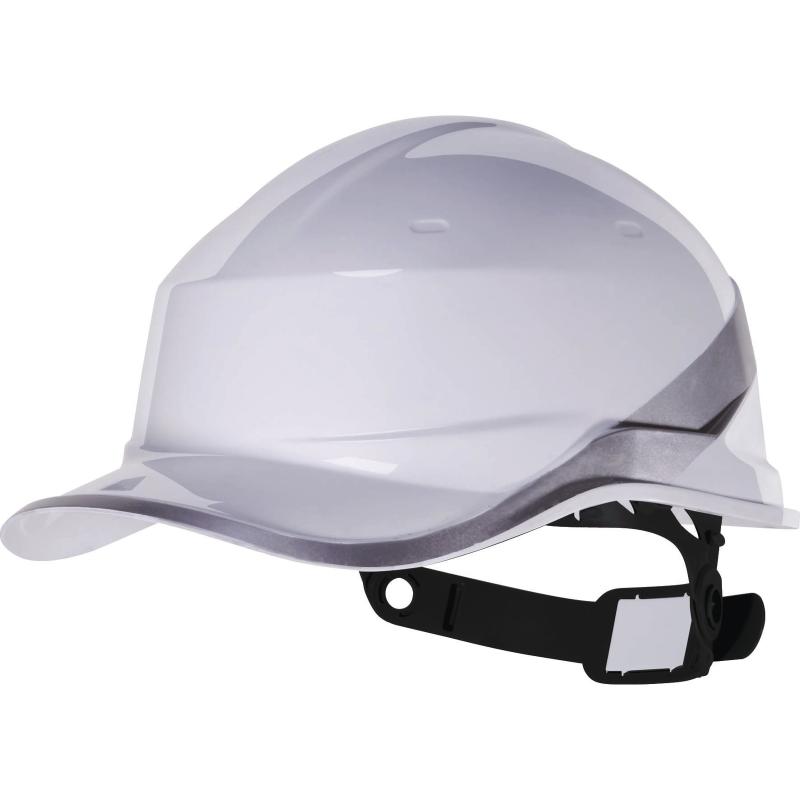

DELTA PLUS DIAMOND V (WITH MENTALPHA)

859.00

DIAMOND5

Product images are for illustrative purposes only and may differ from the actual product.

Specifications
ABS safety helmet. Innovative “baseball cap” shape to improve vision when looking up. Also tested for front-to-back wearing to reduce encumbrance. Polyamide cradle: 3 textile straps with 8 fixing points. Foam sweat band. Innovative button adjustment “color to color” for head sizes 53 to 63 cm. 2 possible headband positions (top/low) for better comfort. Electrical insulation up to 1,000 V.A.C. or 1,500 V.D.C.
Performance -30°C and standard EN397:2012 effective from 03/2016 production batches.
Shell material: ABS
Harness headband material: Polyethylene
Headdress material: Textile harness
Helmet peak: Standard
Textile harness: PA (Polyamide)
Headdress points: 8 points
Jugular points: 4 points
Harness adjustment: Wheel ratchet
Ventilation: Non-vented
Neckband material: EVA foam
Head size (cm): 53-63 cm
Weight (g): 404
Mounting notch (for earmuffs fixation): Yes
Low temperature resistance: -30°C
High temperature resistance: +50°C
Availables or replacement accessories: Badge holder – Reflective strip – Perspiration headband – Shield – Lens – Jugular – Basane – Ear protection – Jugular with chin – Mesh visor – Neck protector – Logo – Wheel-ratchet harness adjustment – Jugular chin – Harness headdress
Compatible product: Lens – Shield – Earmuffs
Lifespan from manufacturing: 84 months
Lifespan from first use: 48 months
Technologies and Labels
D-ONE-ROTOR
‘D-ONE ROTOR’ clamping system
Product Use
  • Public works
  • Building
  • Finishing works / Craftsmanship
  • Light industry
  • Maintenance
  • Chemical industry
  • Oil & Gas (extraction)
  • Petrochemical
  • Public services
  • Water and waste treatment
  • Power Energy
  • Storage
Protects from the Following Risks
  • Heat
  • Shock
  • Electrical
Product Highlights and User Benefits

Neon colors and a silver band

To be better seen at your workstation

Also certified for reverse wearing

Maximum field of vision without a visor

One-D Rotor ergonomic clamping system

One-handed adjustment with or without gloves

Very curved visor

It has the best field of view at a height

The Iconic helmet in construction and industry with its unique design.

Comfort

ABS for lighter weight and greater comfort

Features 3 textile straps with 8 fixing points for an optimal spread of weight

Adjustable headband, low or top, for a better position, and to increase fit and comfort

Adjustable from 53 cm to 63 cm for optimum comfort

Hygeine

Replaceable headband for better hygiene

Removable brow pad, washable and replaceable for a perfect hygiene solution

Performance

Adjustable headband, low or top, for a safer fit and holding the cap in place when moving the head

Easy to use

Reverse wearing for a maximum field of vision without a visor

Certifications and Standards

EN397:2012 + A1:2012 Protective helmets for industry

MMMolten metal spray
LDLateral deformation
-30°C +50°CUse: Very low temperature – -30°C / +50°C
440 VACElectric insulation
EN 50365
EN50365:2002 Electrically insulating helmets for use on low voltage installations
CLASS0Electrically insulating helmets – Class 0

Description

DELTA PLUS DIAMOND V Hard Hat | High-Visibility Baseball Style

The DELTA PLUS DIAMOND V hard hat features a unique “baseball cap” shape. This smart design boosts your upward vision. In addition, workers can wear it backward to remove sight blocks entirely.

The durable ABS shell keeps the helmet light. At the same time, the textile harness spreads weight across eight separate points. This balance reduces neck strain during long shifts. Also, you can easily clean or replace the soft foam brow pad to stay fresh.

Furthermore, the One-D Rotor wheel ratchet system makes adjusting the fit simple. You can quickly change the size from 53 to 63 cm with one hand. In fact, the system works perfectly even while you wear thick work gloves. The adjustable headband also locks the helmet safely on your head when you move.

This heavy-duty industrial hard hat gives you great protection. For instance, the unvented shell insulates against high voltage up to 1,000 V.A.C. It also blocks dangers from molten metal splashes and side impacts. Therefore, it works well for challenging jobs like construction, oil and gas, and power energy.

The high-visibility neon colors and silver band help you stand out on the job site. Additionally, built-in slots let you snap on earmuffs, face shields, or safety lenses. This tough helmet lasts up to 84 months from its build date. Finally, it meets strict EN397 and EN50365 Class 0 safety standards to keep you safe in extreme heat or cold.

Additional information

Color

Black, Blue, Green, Grey-Yellow, Orange, Red, White, Yellow
