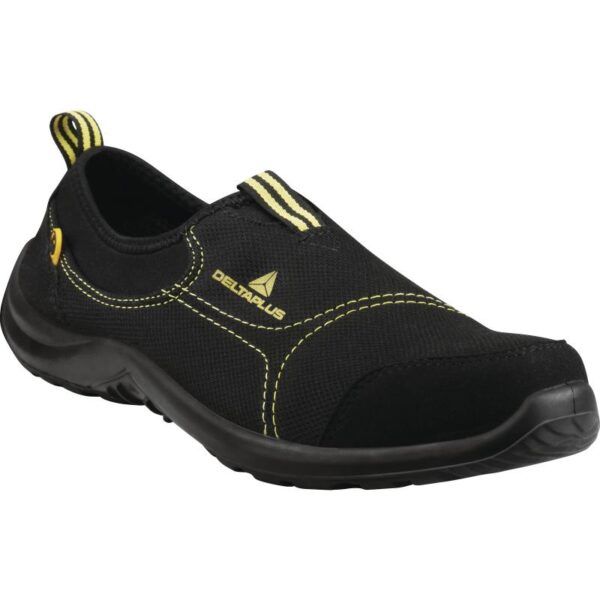

POLYESTER COTTON SHOES – S1P SRC ESD – Lightweight, flexible, low-cut shoe, ideal for ESD environments.
Product images are for illustrative purposes only and may differ from the actual product.
RISK OF ELECTROSTATIC DISCHARGE (ESD*)
Static electricity present on operators must be controlled in the following areas of use, as it can :
– damaged materials to sensitive electric shock: various electronic and electrical industries …
– generate particles likely to be deposited on the paint: automotive industry, household appliances …
The purpose of ESD control is to protect the electronic equipment being handled and not the wearer.
* Electrostatic Discharge
What does the regulation say?
The requirements for the design, establishment, implementation, and maintenance of electrostatic discharge control devices (ESD) that can damage electronic components are defined by standard EN61340-5-1.
The device called “ESD” is used to control electrical discharges for manufacturing, processing, assembly, packaging, maintenance, testing, inspection, transport, or handling of electrical or electronic parts, assemblies, and equipment that may be damaged by electrostatic discharges.
To be usable in an ESD device, a shoe must at least be qualified according to the test methods of EN IEC 61340-4-3 and offer an electrical resistance lower than 10⁸ Ω.
SAULT2 ESD, VIAGI ESD, MIAMI ESD, and MEMPHIS ESD meet this level of resistance required for compliance. These shoes, thanks to their low electrical resistance, limit the risk of electrostatic discharge.
Flexible sole to reduce fatigue during use
Lightweight product to reduce fatigue throughout the day
Second-skin effect for a close-fitting fit
Enhanced protection against electrostatic discharge

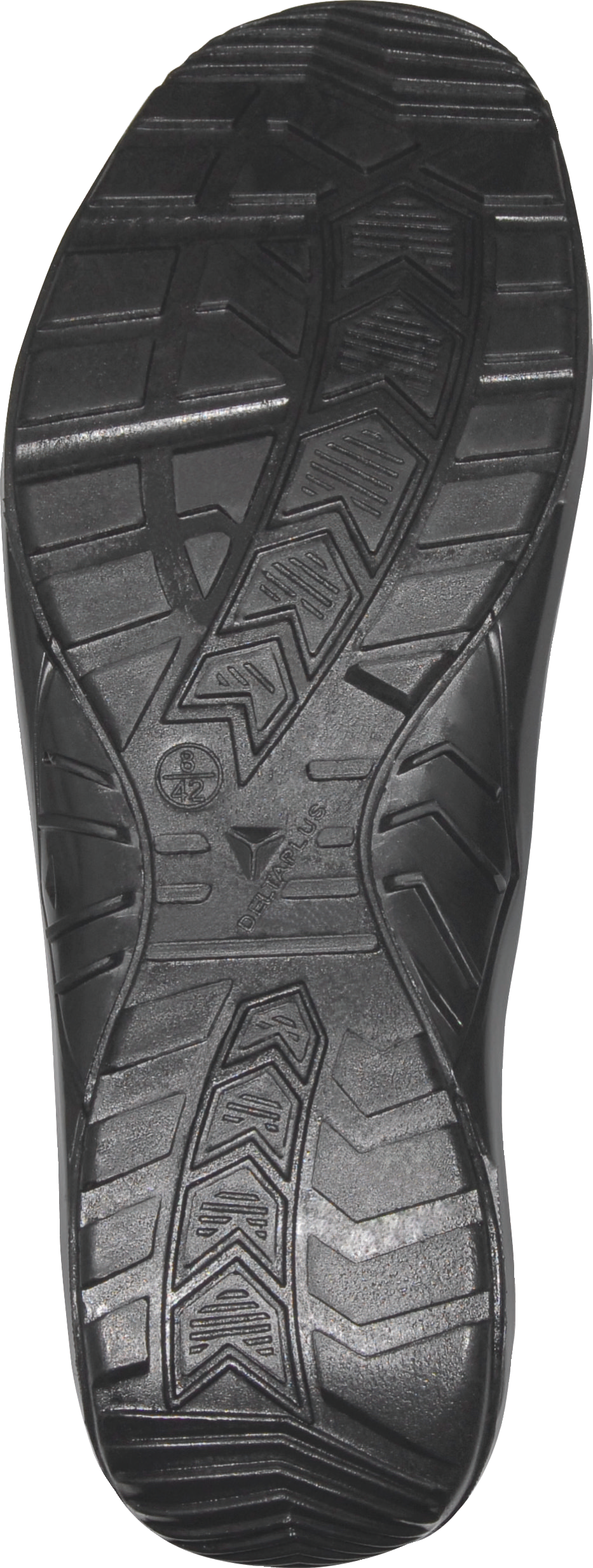

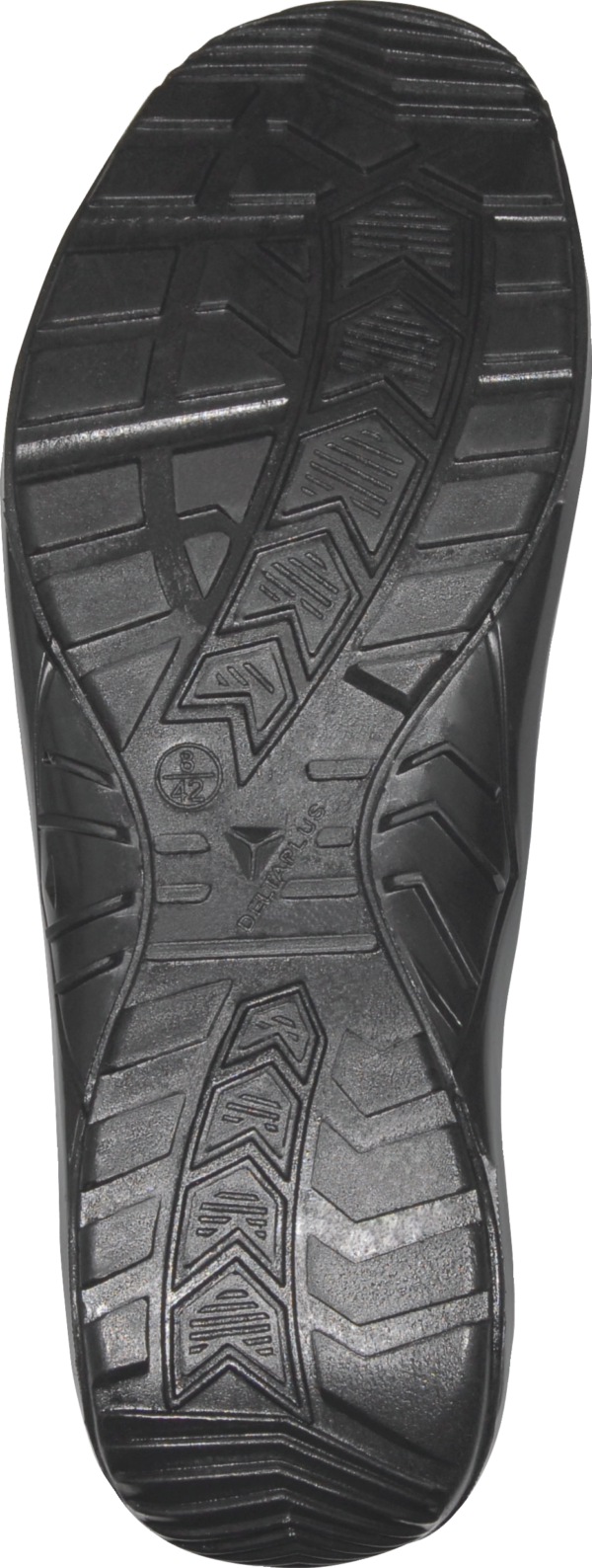

The sole’s grip properties ensure high stability
Removable insock for easy cleaning
EN ISO 20345:2011 Personal protective equipment – Safety footwear.
|Additional special requirements
EN61340-5-1:2016 Electrostatic: Part 5-1: Protection of electronic devices from electrostatic phenomena – General requirements ( ESD control footwear ) + EN IEC 61340-4-3: 2018 – Part 4-3: Standard test methods for specific applications – Footwear
|ESD control footwear
|Electrostatic charge dissipation performance.
