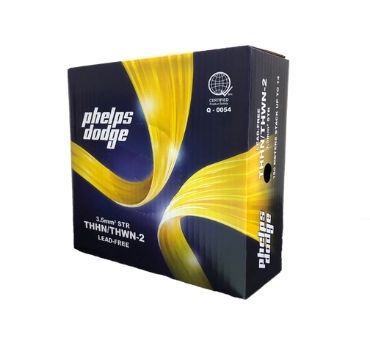

PHELPS DODGE PERMALITE THHN/THWN-2 (BOX OF 150 METERS)

Product images are for illustrative purposes only and may differ from the actual product.

Solid or stranded copper conductors, PVC-insulated, nylon-jacketed, rated at a temperature of 90°C for both dry and wet applications.

Specifications

• The THHN/THWN-2 conductors are designed according to local and internationally recognized and accepted standards: ASTM: B3, B8
• ASTM: B3, B8
• Underwriters Laboratory: Listed under file #E-55448 for AWG Conductor sizes
• PNS: 35, 260, and 1207 Specification
• PEC 2009 Article 3.18 compliant for Cable tray
• NEC Article 318 compliant for Cable tray



Characteristics and Special Features

• Designed to operate at a maximum conductor temperature of 90°C both for wet and dry locations
• Higher cable ampacity
• Available in six standard colors (red, black, white, green, yellow, and blue)
• Jacketed with nylon for mechanical protection; greater resistance against abrasion, resistance to petroleum by-products, chemical agents, and oils, and termite resistance.
• With sequential cable marker printed on the cable surface for sizes 38mm² up to 500mm² to indicate the length of the cable, act as cable usage reference, and for inventory control



Use or Application

• Moisture and heat-resistant, flame retardant, for dry and wet applications.
• Voltage/Maximum operating temperature: 600 V/90°C
• A full-size range can be installed in conduits.
• Cable Tray Rated for 50mm2 and bigger sizes



Usage

• Residential Homes
• Residential & Commercial Buildings (Mixed Use)
• Industrial/Manufacturing Buildings/Facilities
• Power Utilities
• Distributions/Transmissions
• Power Generation/Industrial Plants/Renewables
• Telcoms Distribution
• Data Centers
• Cell Sites
• Special Buildings such as infra projects (airports/LRT-Train/Subways)



Application

• When used as type THHN/THWN-2, conductors are suitable for use in wet or dry locations at temperatures not to exceed 90°C both dry and wet locations or not to exceed 75°C exposed to oil and gasoline.
• For 50mm²-500mm², Cable tray (CT) rated THHN/THWN-2 can be installed in Cable Trays
